Datalogic Memor M30 Inventory Scanner Setup



Please make sure you Install the "Memor30_AmberCount.apk" from the scanner memory, once you have uploaded the SKULIST and AmberCount to the scanner using the AmberPOS Inventory Count Module. Do do use any other APK installer as it will not work with AmberPOS.





Apply Enter Key /  Carriage Return in applications

Settings -> DataLogic Settings -> Scanner & Decoder -> Wedge -> Keyboard Wedge input mode -> Select the Key Pressure setting

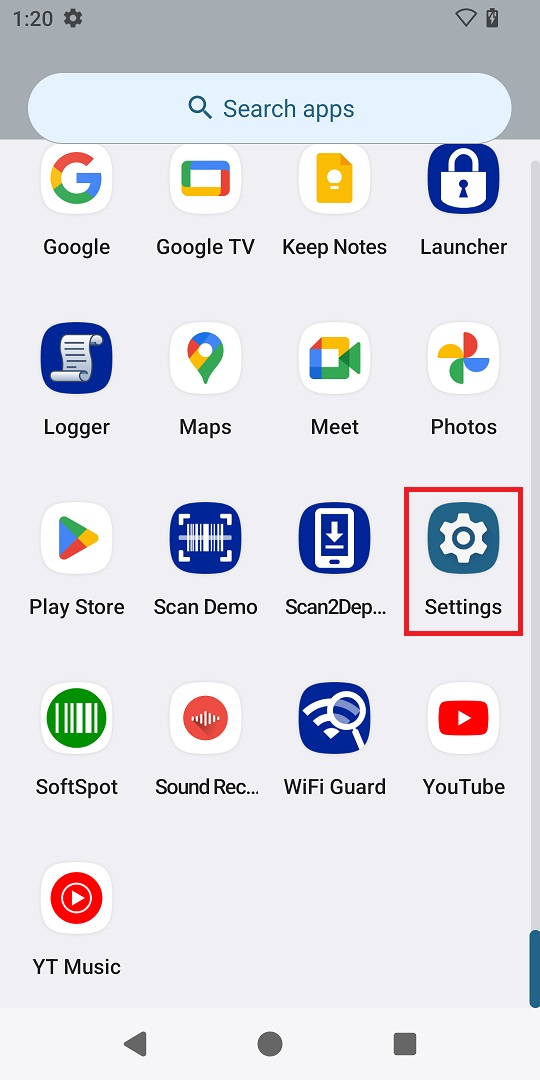

1) Swipe up on the scanner and tap on the Settings Gear icon

settings Icon.jpg

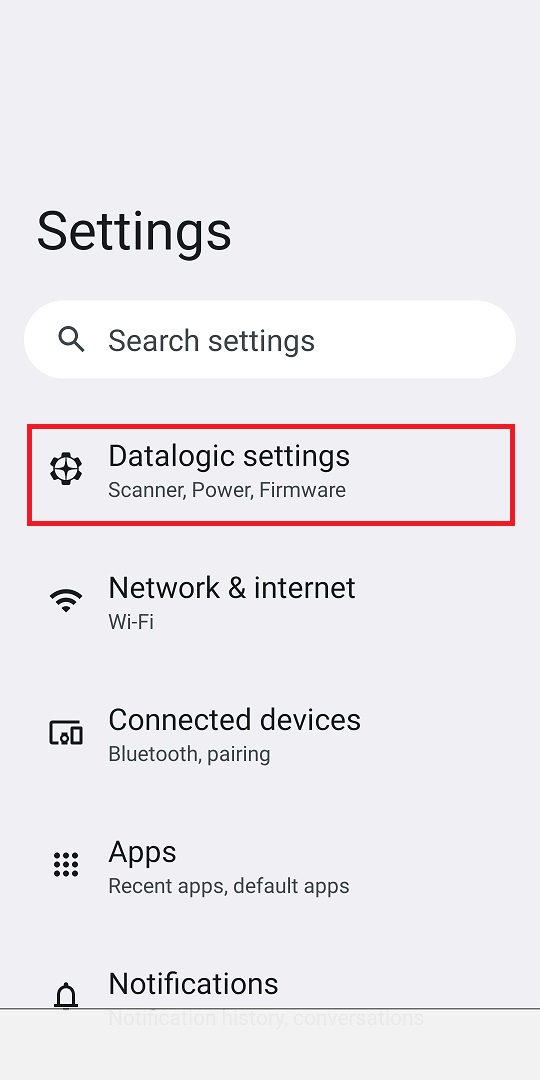

2) Tap on Datalogic Settings

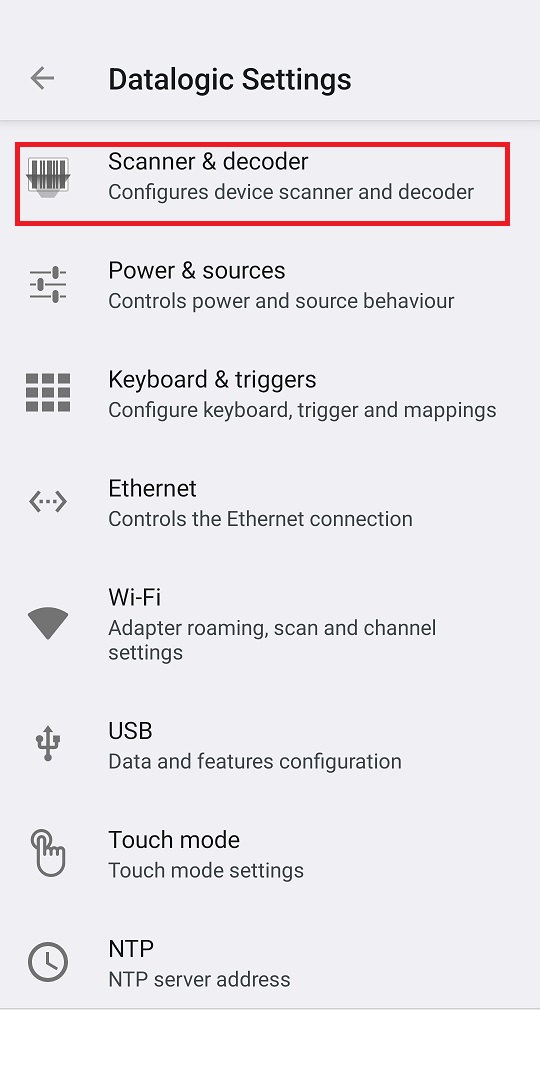

3) Tap on Scanner & Decoder

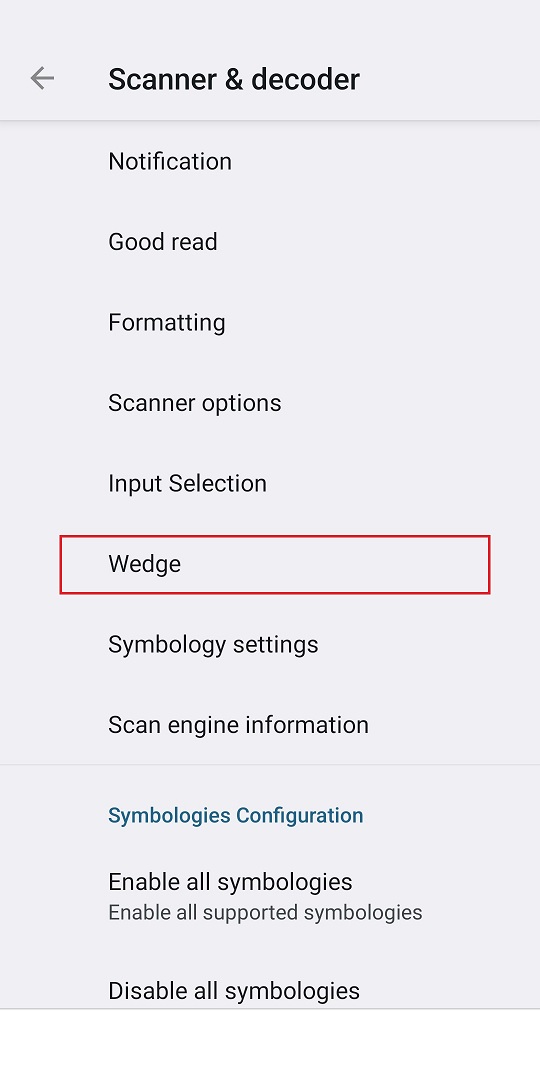

4) Tap on Wedge

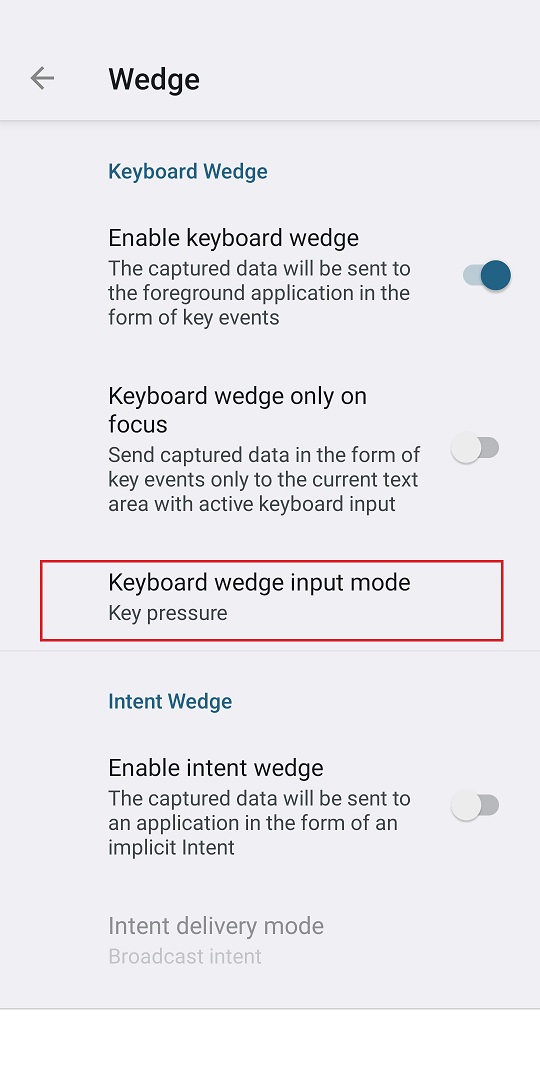

5) Tap on Keyboard wedge input mode

Keyboard wedge input mode.jpg

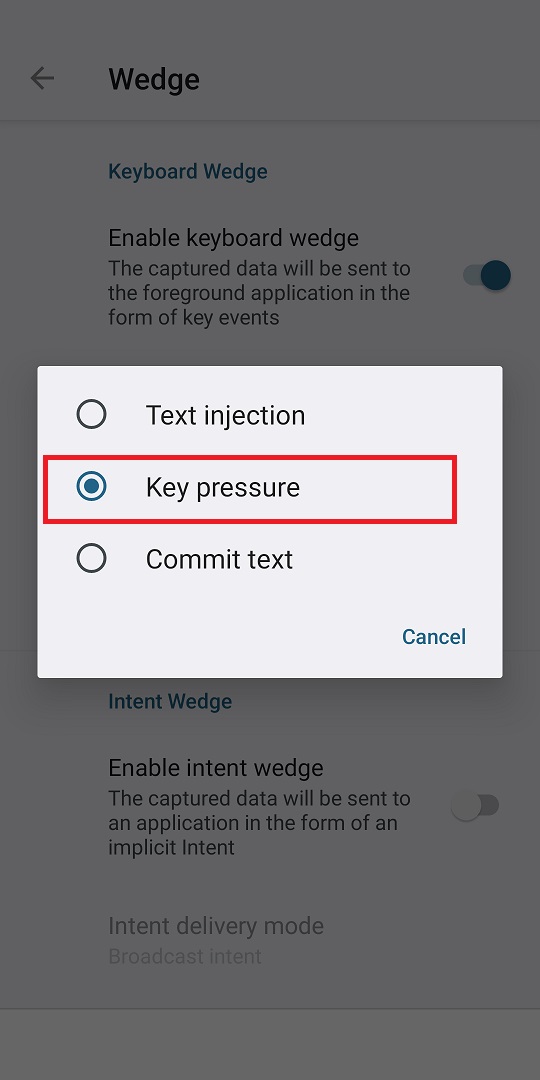

6) Select Key Pressure (Default setting is Commit text)

Key pressure.jpg

7) To go back to the home screen, click the back arrow 5 times on the bottom left of the scanner.
